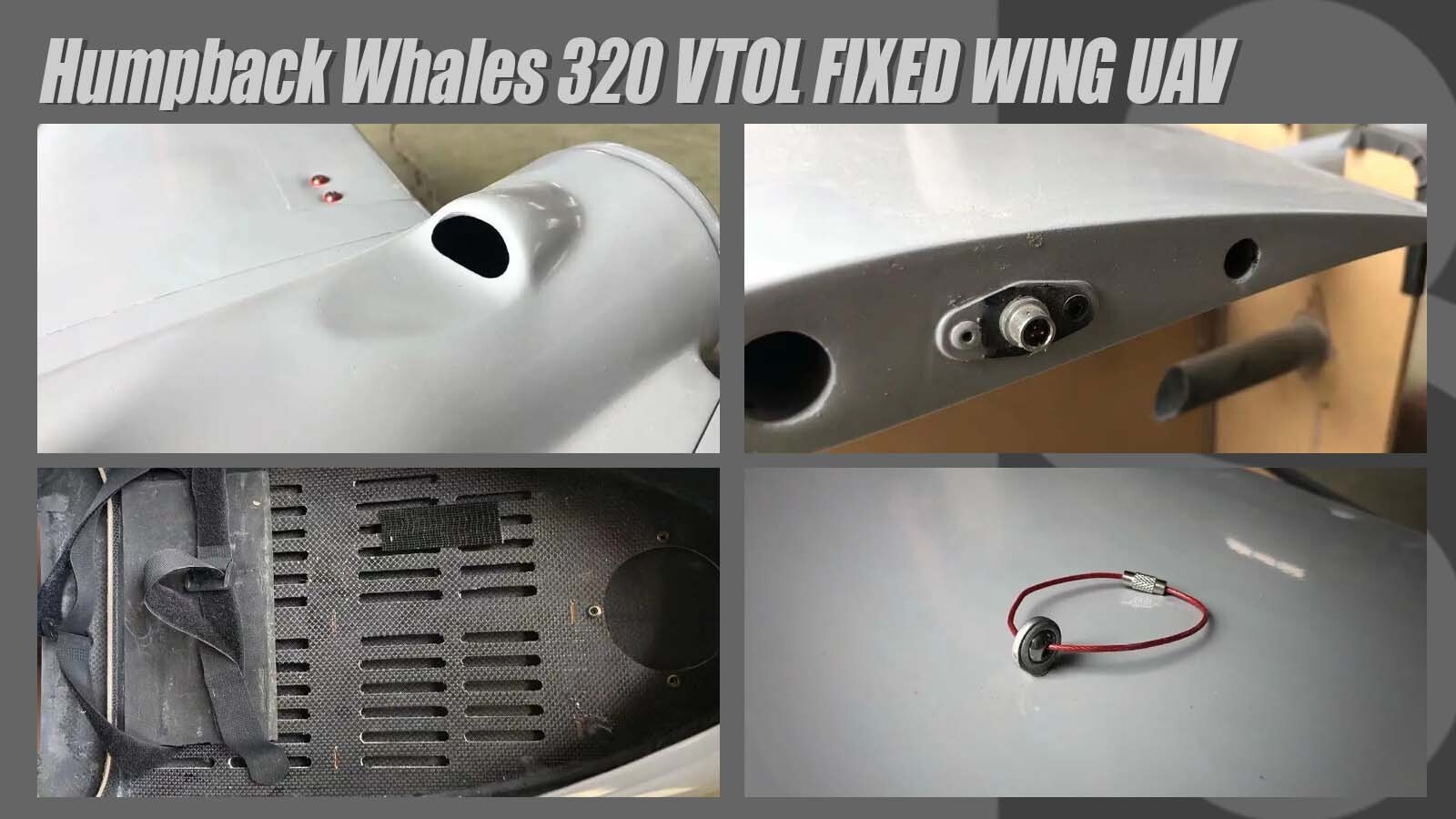

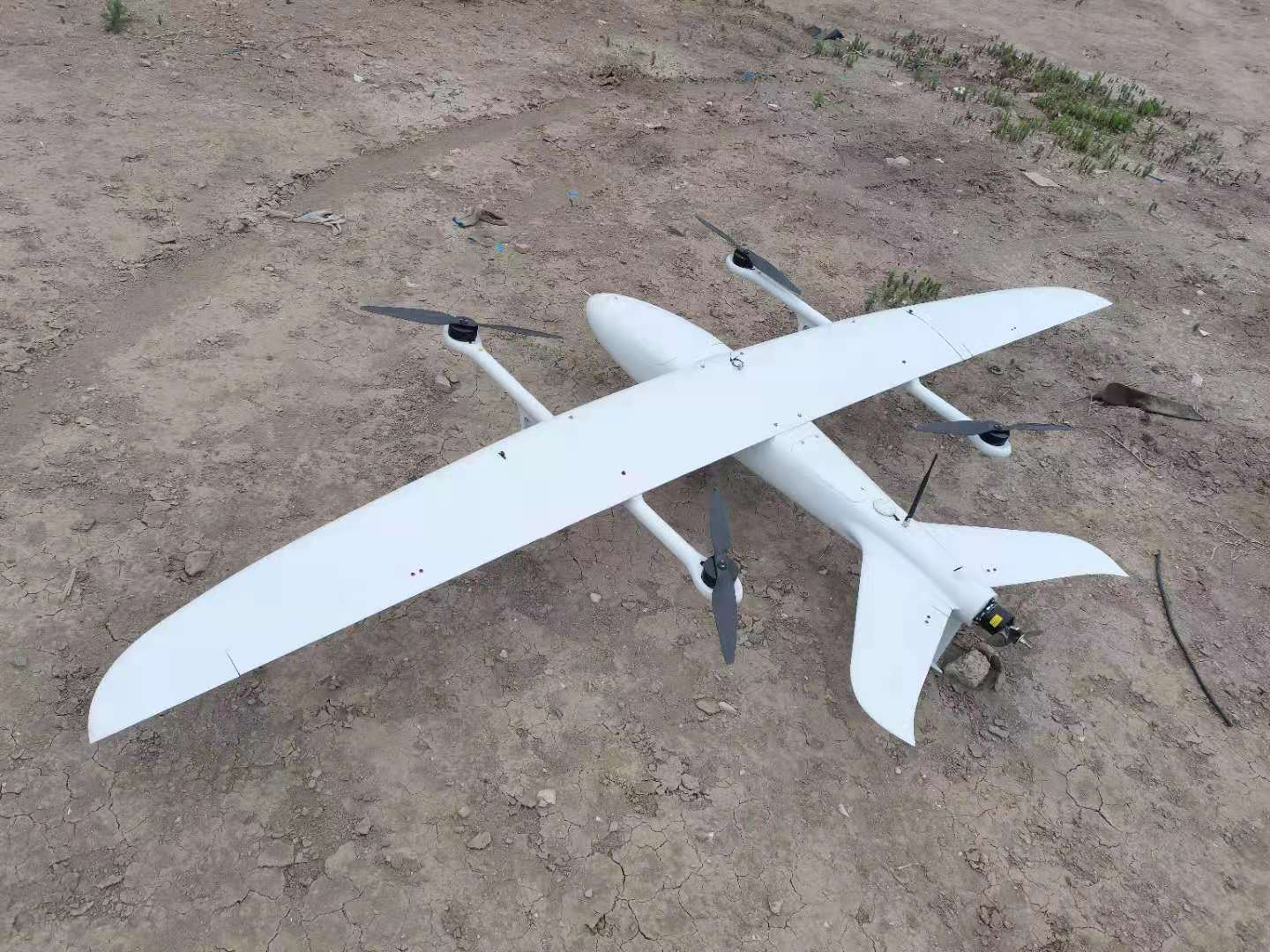

Humpback Whale W-32 320 VTOL FIXED WING UAV

Specification:

Max take-off weight:20kg

Wingspan: 3200mm

Length: 1600mm

Payload: 1.5-5kg

Endurance: 1.5-3 hours

Cruising speed: 18-25m/s

Stall speed: 16m/s

Max speed: 35m/s

Transmission Distance: 230km

Working temperature: -20~45℃

Suggested Battery: 12S 30000mah or 12S 44000mah

Max working altitude: 5000m

Wind resistance: 12m/s(VTOL), 14m/s(Fixed wing)

Control Radius: 30km~50km

Carrying Case:1650*350*300mm

Aircraft frame**1

VTOL Motor*4

VTOL ESC*4

Fixed wing Motor*1

Fixed wing ECS*1

Cube Orange*1

Assembly and flight test service*1
