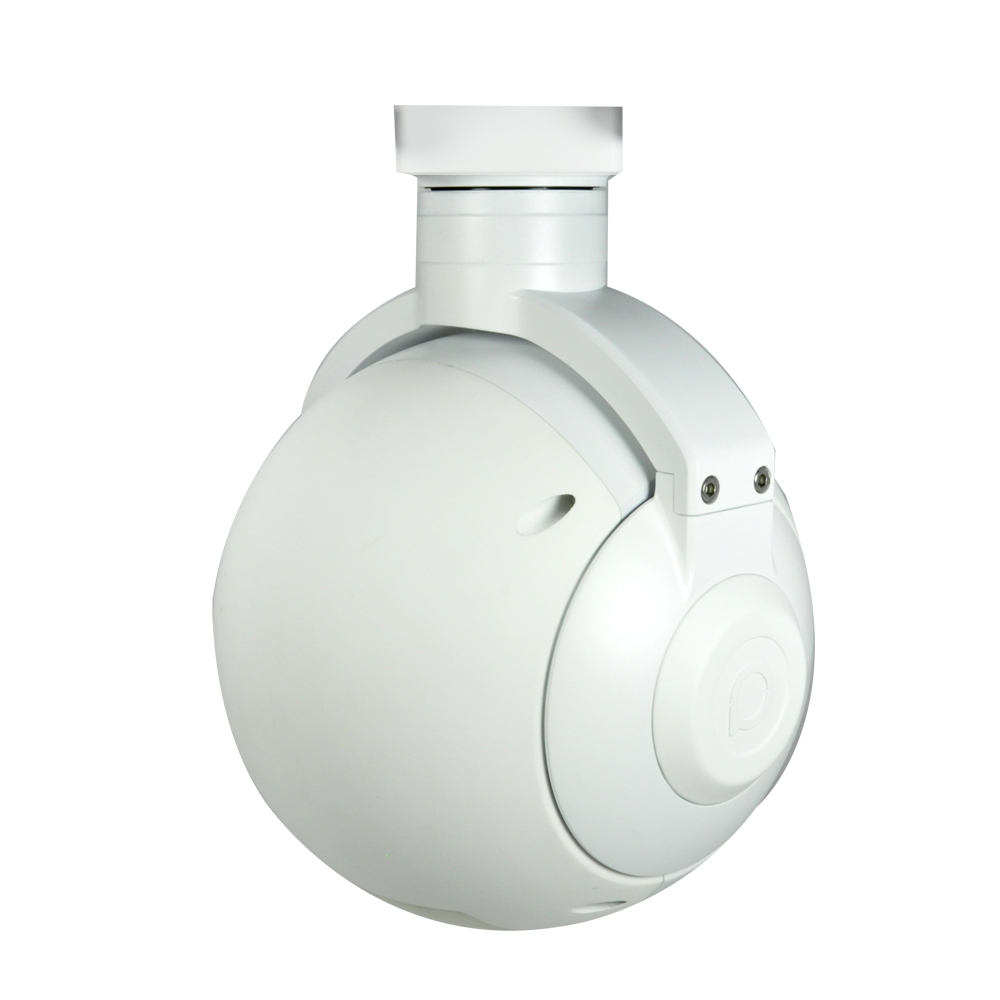

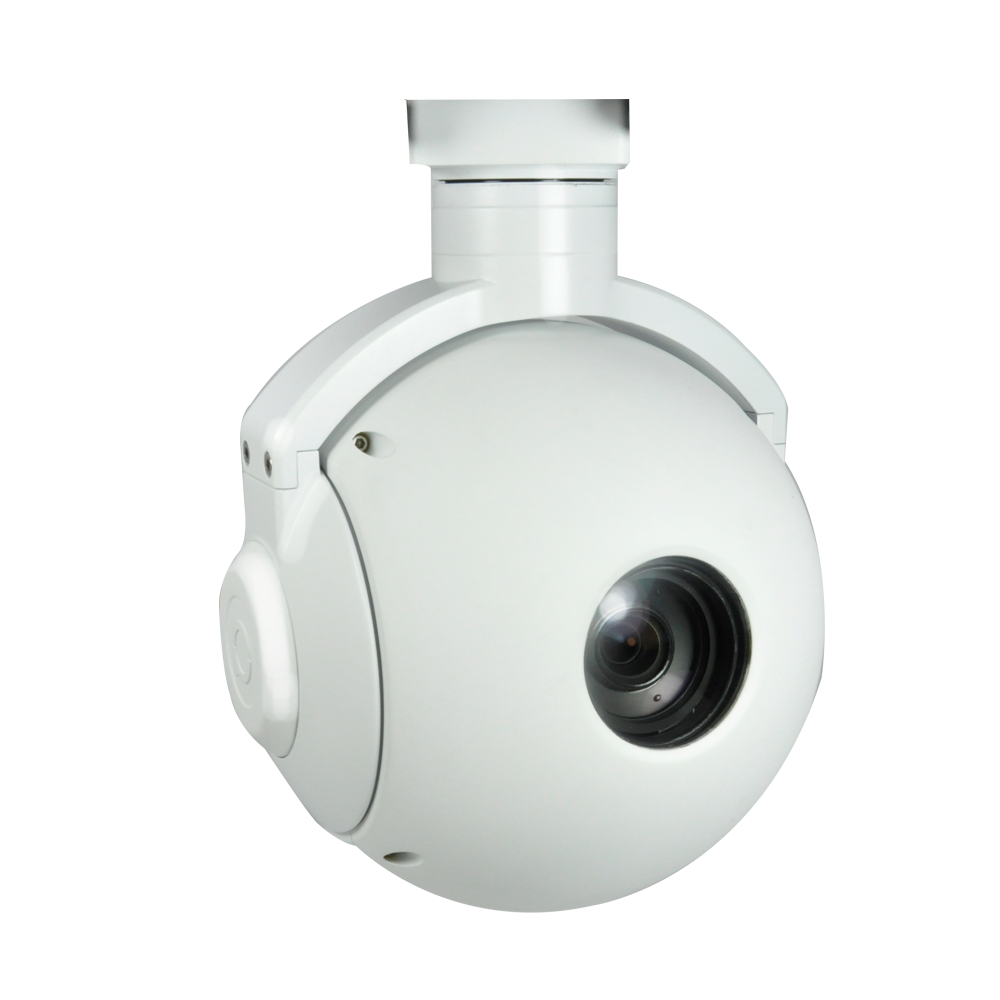

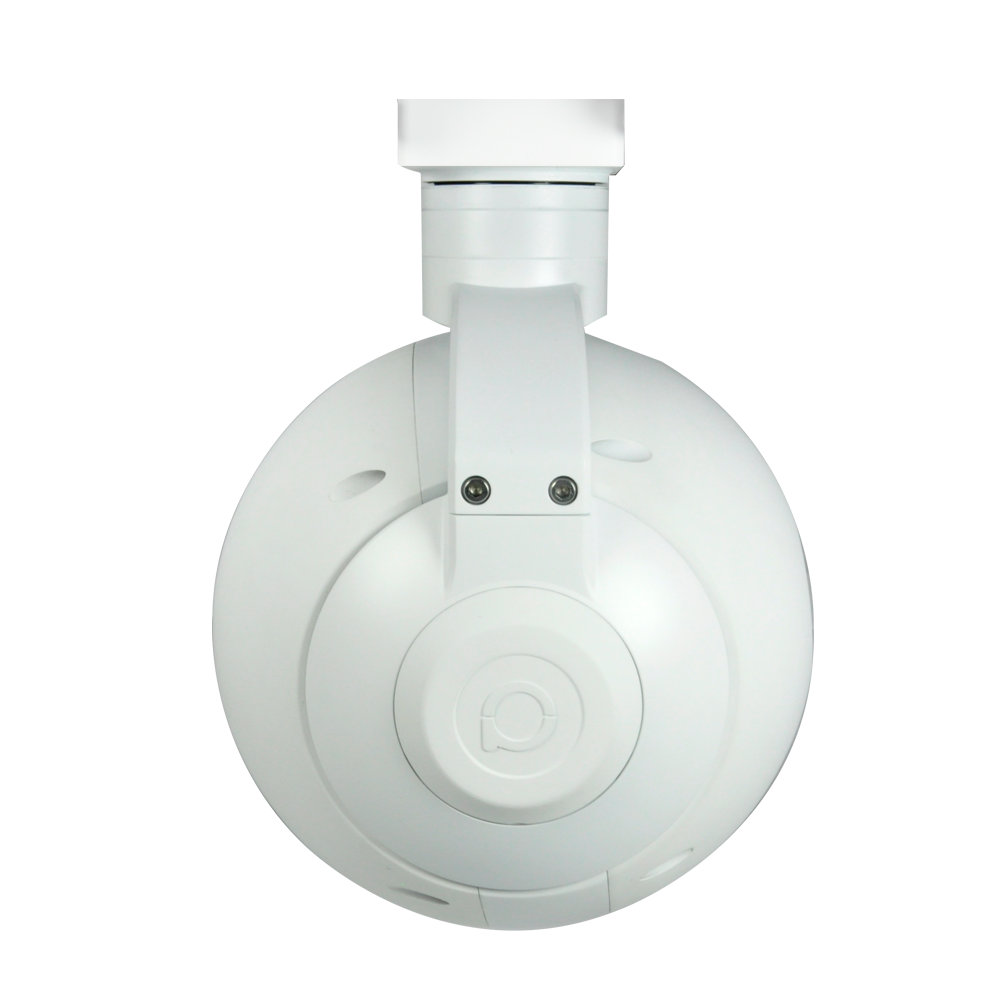

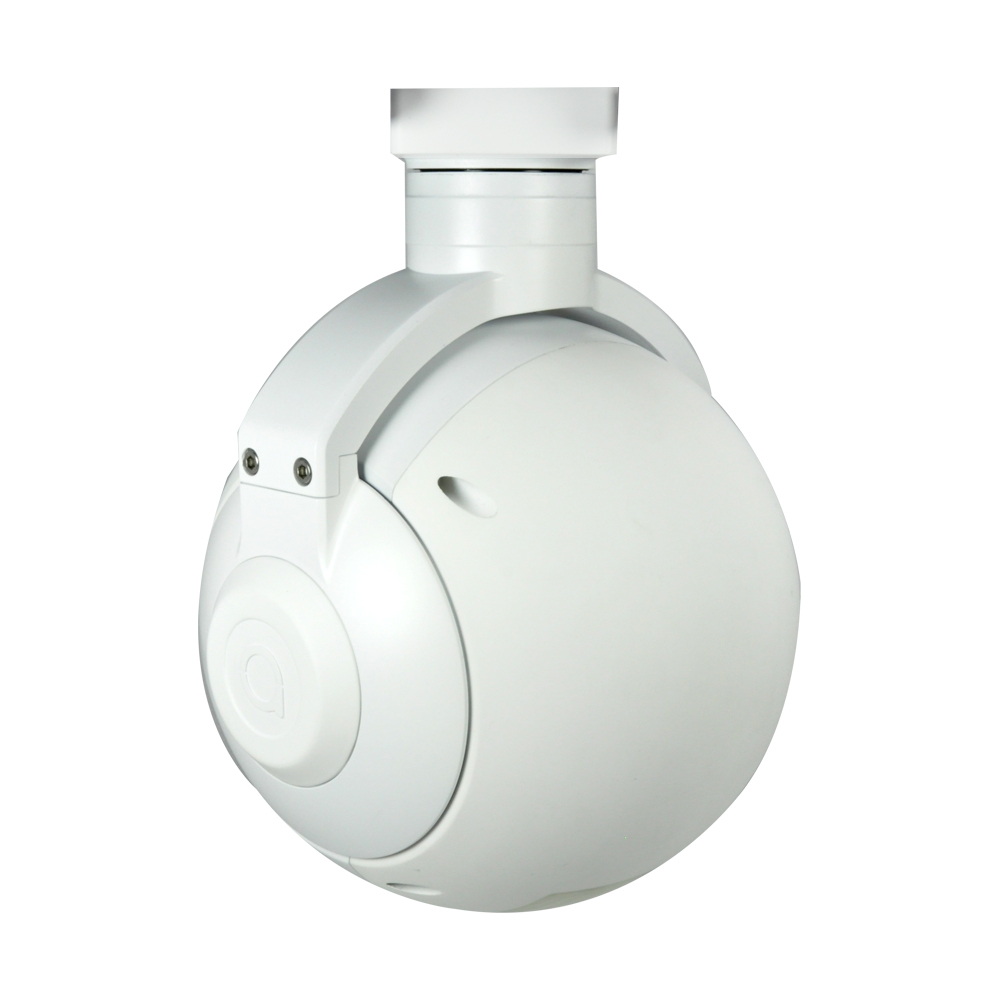

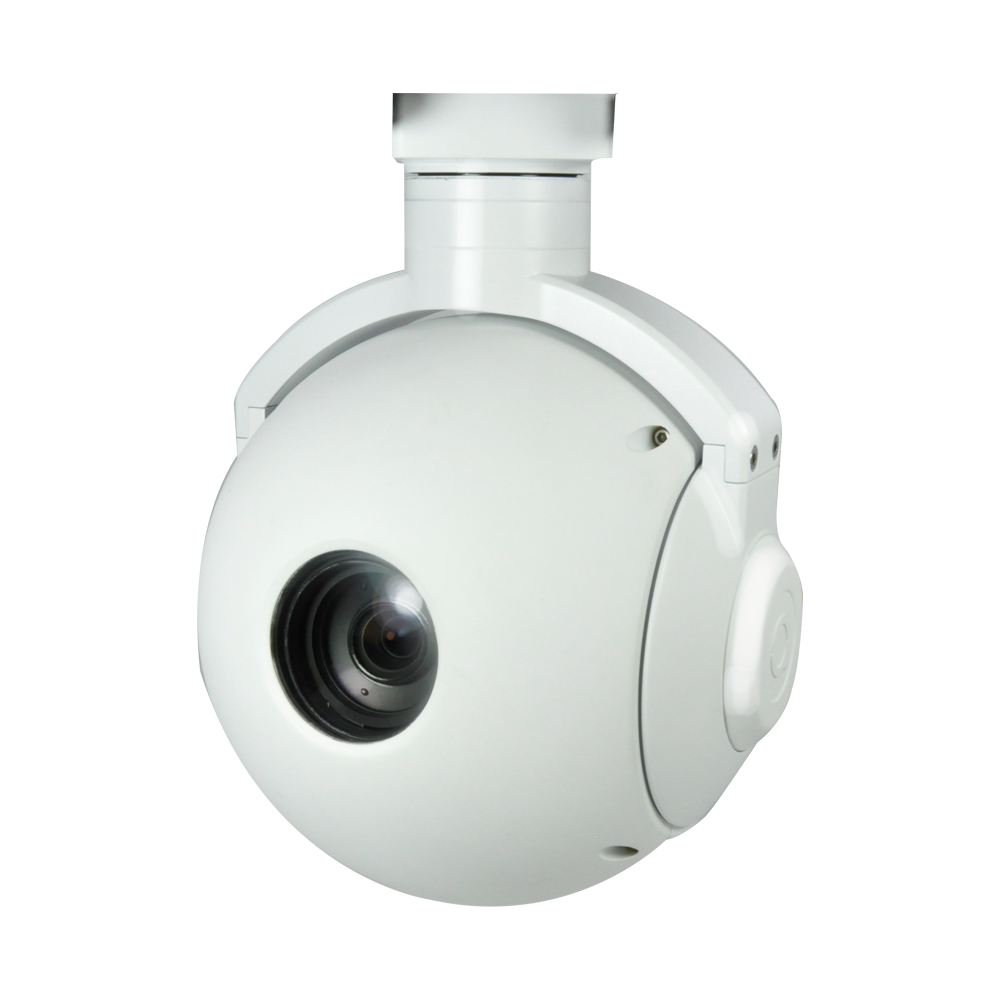

U30T Pro

U30T pro is a 2-axis design but 3-axis function gimbal camera with 30x optical zoom. It’s powered by SONY 1/2.8″ “Exmor R” CMOS module, 2.13 million effective pixels, fast auto-focus speed, 1080p HD image quality. U30T pro can achieve target tracking. It easy to control pitch, yaw, zoom, tracking function through PWM, S.BUS or TTL.

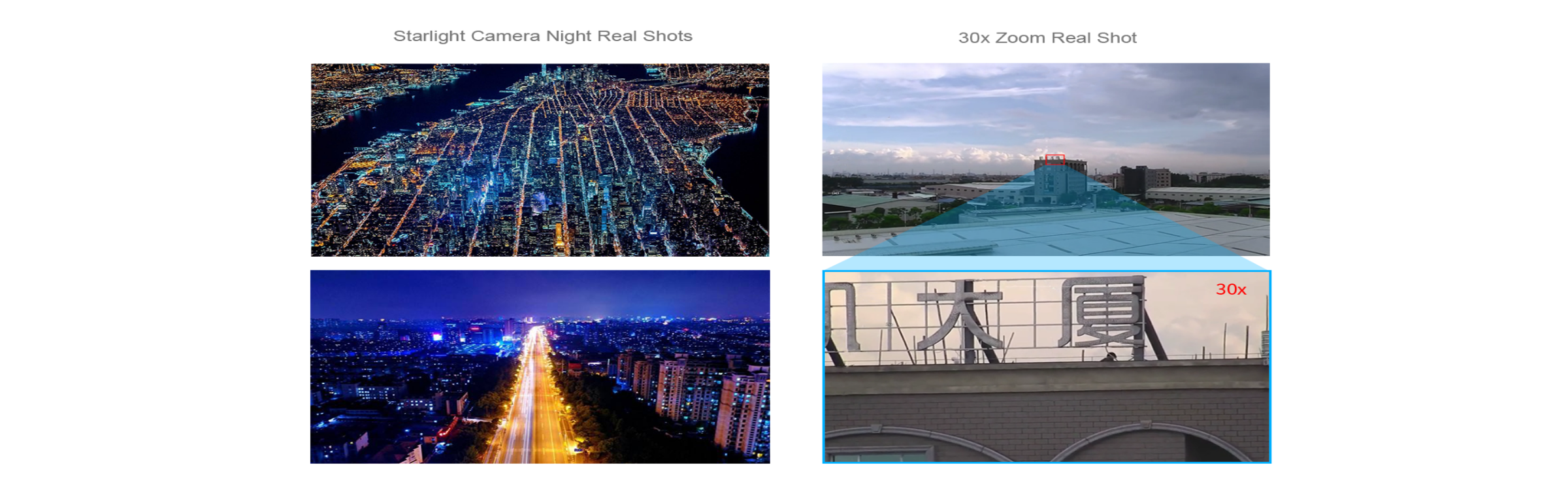

SONY 30x Zoom Starlight Camera

Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Q30T can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.

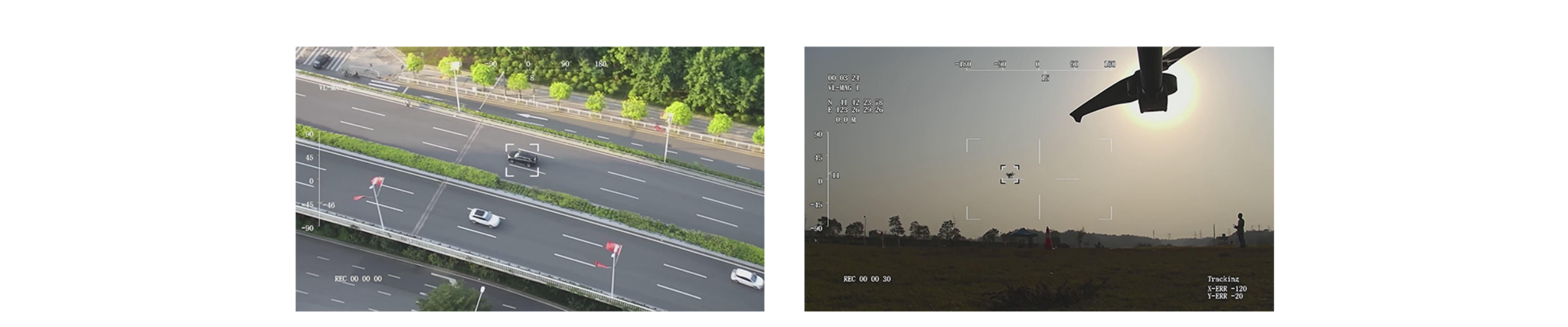

Single Sensor Visible Light Camera Object Tracking

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.

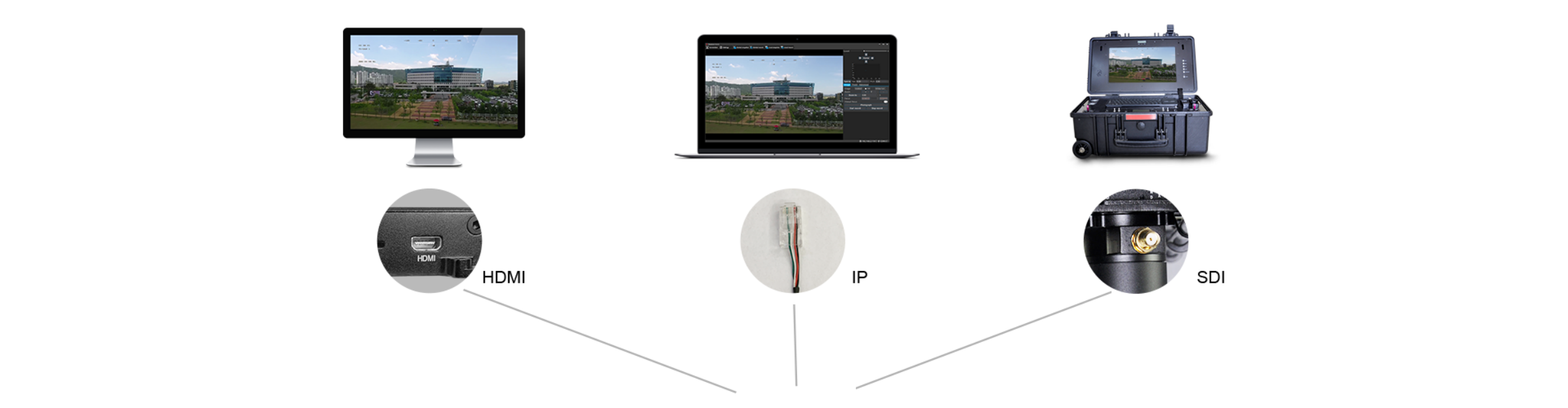

Multi Output Methods Optional

U30T pro support both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.

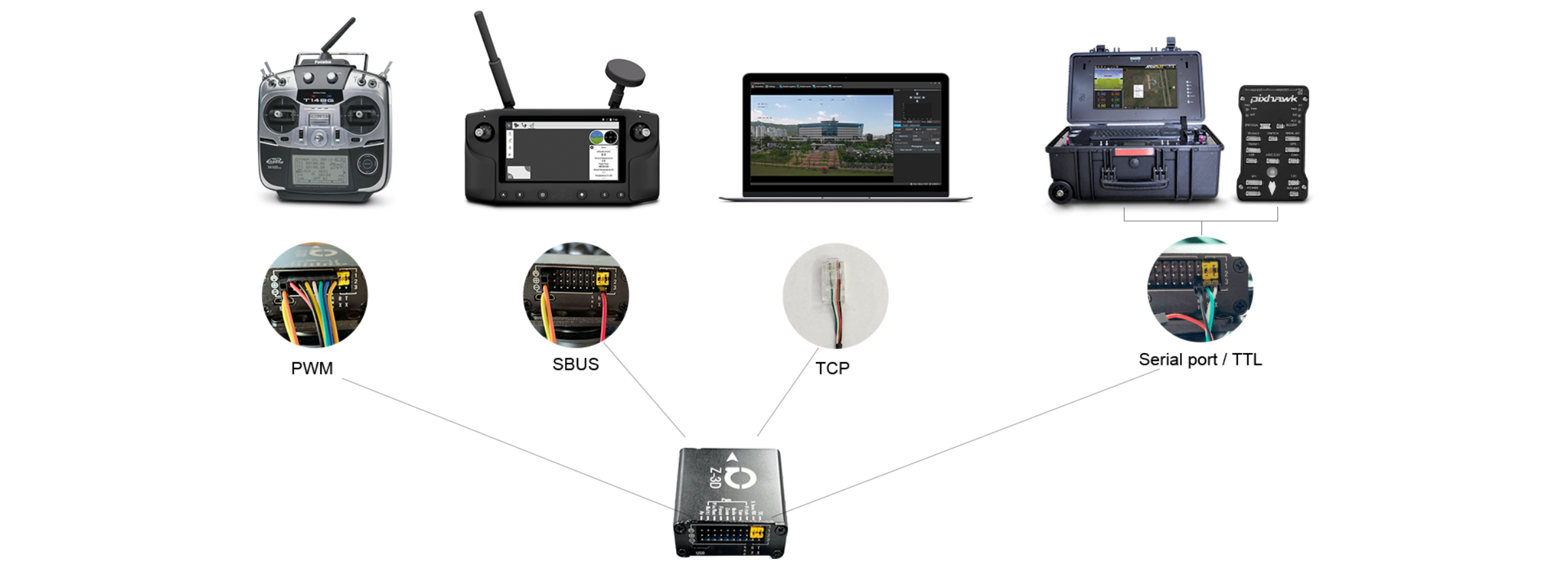

Multi Control Methods

Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.

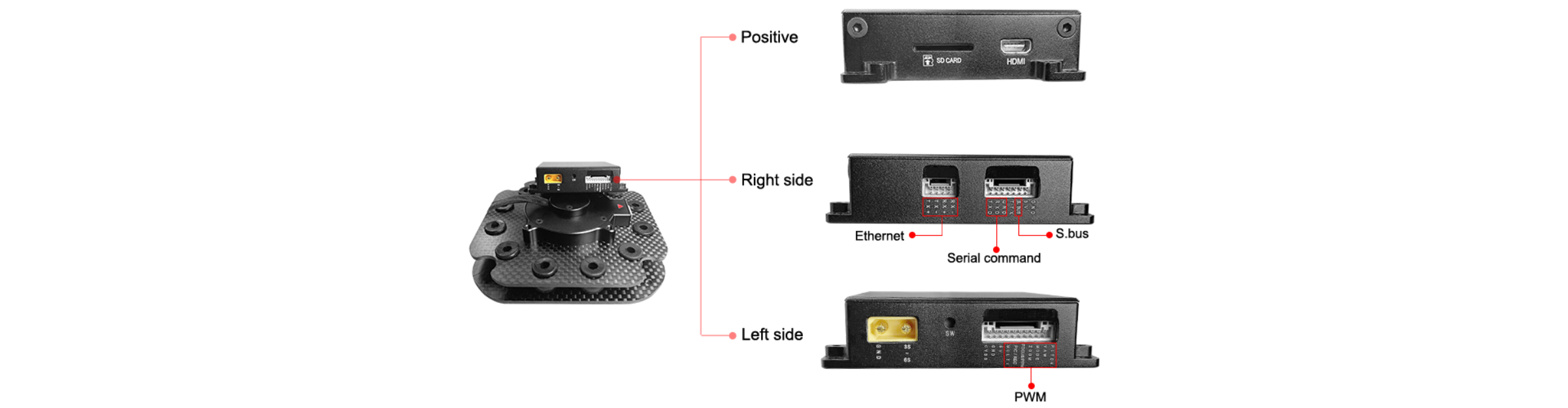

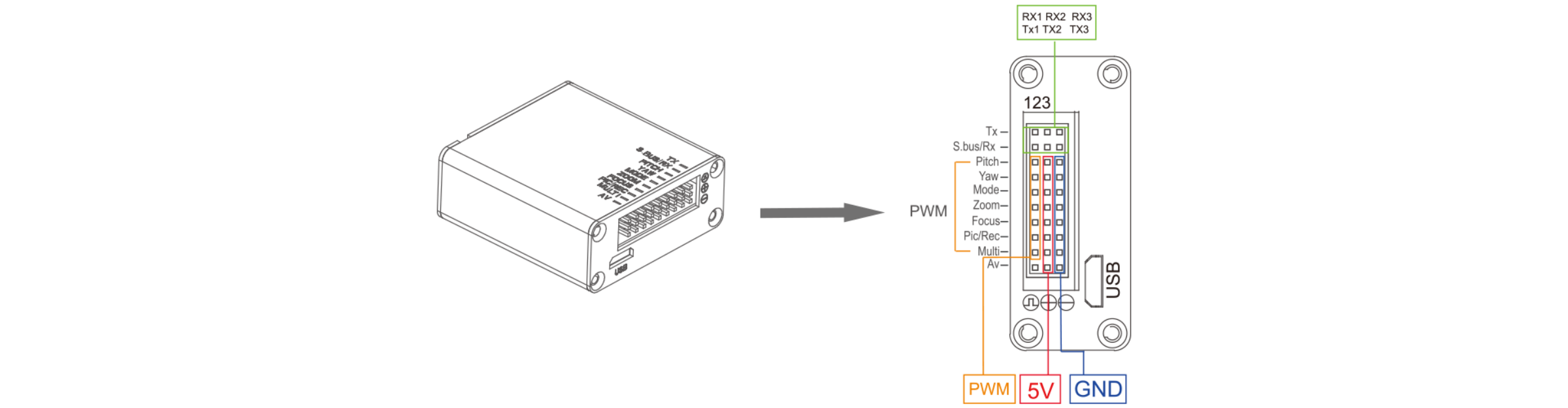

Control box signal interfaces:

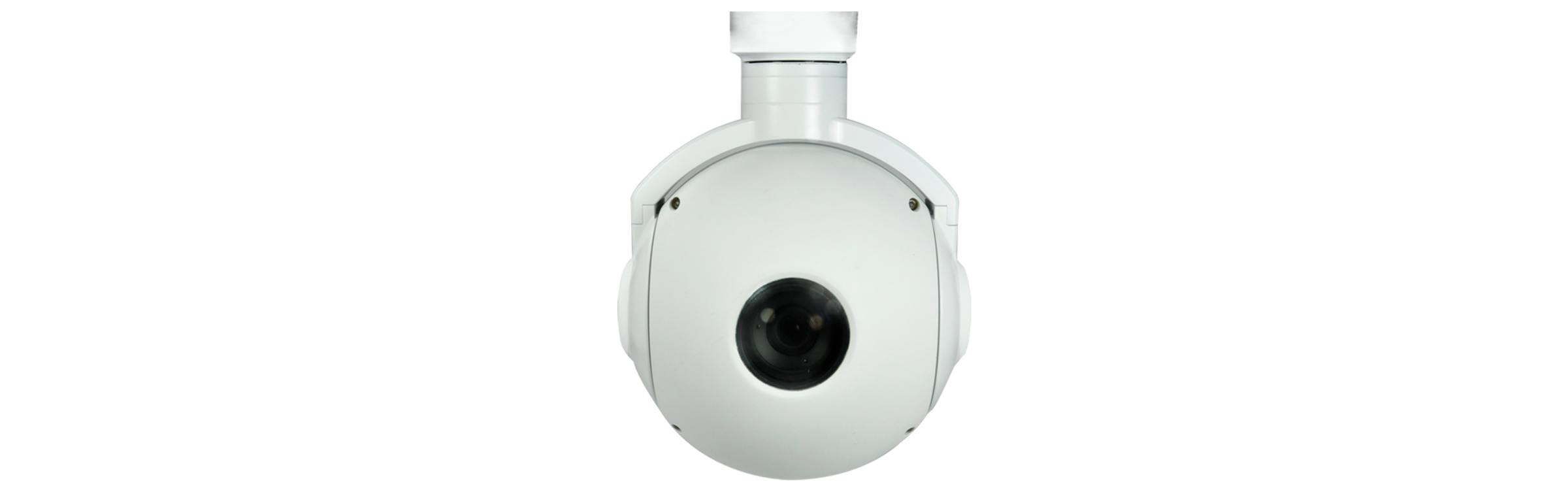

Compatible with Viewport

U30T pro is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.

Dimensions
