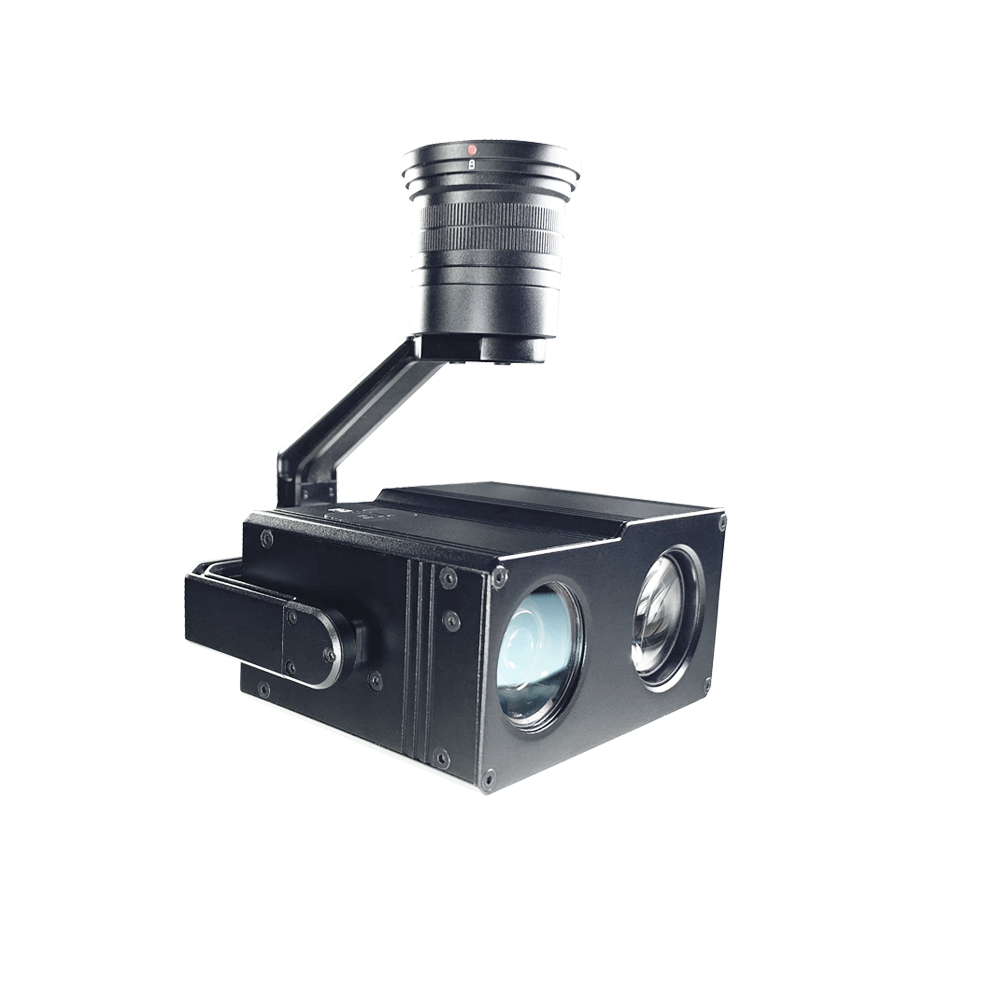

Z10TL 10X ZOOM NIGHT VISION CAMERA

stars, based on 0reviews
$4999.00 kilogram
1000items available
Add to Basket Inquire Now

Z10TL 10X ZOOM NIGHT VISION CAMERA  Z10TL is a high-precision professional 3-axis gimbal camera which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. It can fulfill many powerful functions, such as: shoots or records with 10 times optical zoom, object tracking, IR laser night vision and so on. The speed of Z10TL gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate. Fast mode for wide end, which makes the gimbal control sensitive and quick. Also the one-key to center function will allow the gimbal return to initial position automatically and rapidly.



Z10TL 10X ZOOM NIGHT VISION CAMERA



Z10TL 10X ZOOM NIGHT VISION CAMERA  10x Optical Zoom Camera, 300m IR Laser Light



Powered by 1/2.9" CMOS, with color 0.05lux@F1.6, ultra low illumination, Z10TL can still clearly display image features in utter poor light environment. 2mega effective pixel and 1080p HD image quality, combined with powerful optical zoom technology, and 300 meter laser light supplement, the observation range is up to 300 meters even at a pitch black night, which can meet the application requirements of various domains.







 Z10TL 10X ZOOM NIGHT VISION CAMERA  Z10TL 10X ZOOM NIGHT VISION CAMERA  Camera Object Tracking



Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.


 Z10TL 10X ZOOM NIGHT VISION CAMERA  Applications



Mainly supply in military and police law enforcement, fire-fighting, surveillance and search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.





Z10TL 10X ZOOM NIGHT VISION CAMERA  Specifications





Hardware Parameter

Working voltage

14V ~ 16V

Input voltage

3S ~ 4S

Dynamic current

1100mA @ 12V

Idle current

800mA @ 12V

Power consumption

≤ 13.2W

Working environment temp.

-40℃ ~ +60℃

Output

micro HDMI(HD output 1080P 60fps) / Skyport

Local-storage

SD card (Up to 128G, class 10, FAT32 or ex FAT format)

Control method

PWM  / TTL / S.BUS / DJI Polit

Gimbal Spec

Pitch/Tilt

±90°

Roll

±85°

Yaw/Pan

±150° / ±360° (IP/SDI output)

Vibration angle

Pitch/Roll: ±0.02°, Yaw±0.03°

One-key to center

Camera Spec

Imager Sensor

1/2.8inch CMOS

Total pixel

2.43MP

Dynamic range

65dB

Lens

5MP

Optical zoom

10x, F=4.7~47mm

Digital zoom

6x

Min object distance

1.5M

Viewing angle

Horizontal: 58.7°(Wide end) ~ 3.2°(Tele end)

Vertical: 45°(wide end) ~ 2.4°(tele end)

Focus: 70.9°(wide end) ~ 7.1°(tele end)

Sync system

Progressive scanning

Local video

1080P 30fps local TF card

HD output

1080P/720/480P 60fps HDMI1.4

AV output

Standard CVBS 1Vp-p

S/N ratio

≥52dB

Min illumination

Color 0.05lux@F1.6

Backlight compensation

Backlight compensation/strong light inhibition

Gain

Auto

White balance

Auto/Manual

Shutter speed

Auto

Control system

UART/IR/PWM

Communication protocol

PELCO-D, Hitachi protocol or VISCA

Focus

Auto

Focus speed

2s

Lens initialization

Built-in

User presetting bit

20 sets

Image rotation

180°, Horizontal/Vertical mirror image

Defog

Yes

OSD

Yes

Fotoformate

JPEG

Videoformate

MP4

Camera Object Tracking

Update rate of deviation pixel

50Hz

Output delay of deviation pixel

<10ms

Minimum object contrast

5%

SNR

4

Minimum object size

16*16 pixel

Maximum object size

160*160 pixel

Tracking speed

±32 pixel/frame

Object memory time

100 frames (4s)

The mean square root values of pulse noise in the object position

< 0.5 pixel

Light Supplement

Effective range

300 meters

Light wave length

850 ± 10nm (940nm, 980nm)

Illumination angle

power zoom synchronously, 70°~2.0° adjustable

Zoom time

2s (wide end - tele end)

Power consumption of laser chipset

2 ± 0.2W

Illumination angle

Tele end 2.0°: effective range 300 meters, spot diameter < 20 meters
Wide end 70°: effective range  40 meters

Working voltage

DC12V ± 10%

Power consumption in total

< 11W

Control system

PWM/TTL

Communication system

UART_TTL

Communication protocol

PELCO-D (defualt baud rate 9600bps)

Packing Information

N.W.

650g / 554g with Skyport

Product meas.

129.8*117.1*119.8mm
