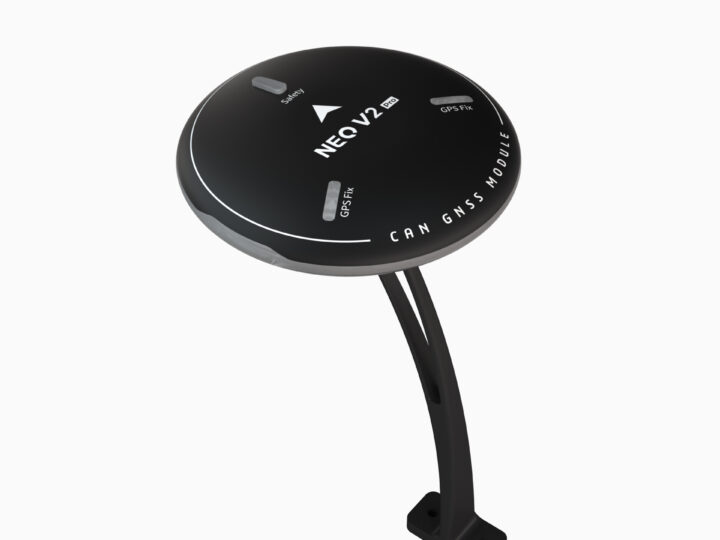

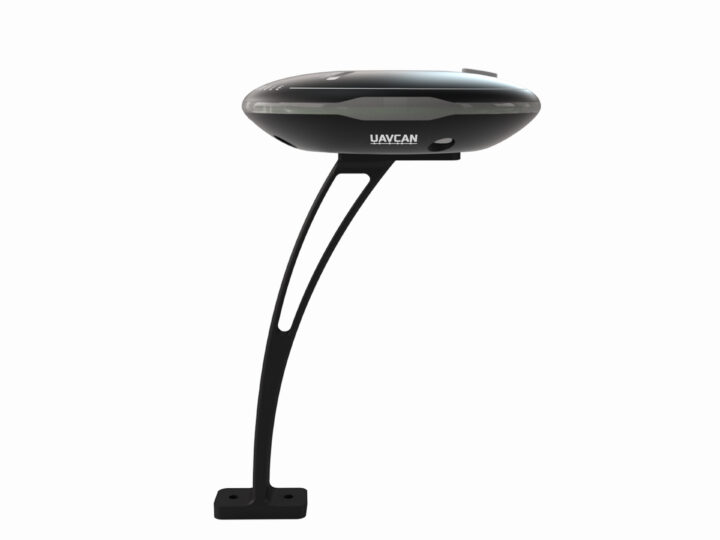

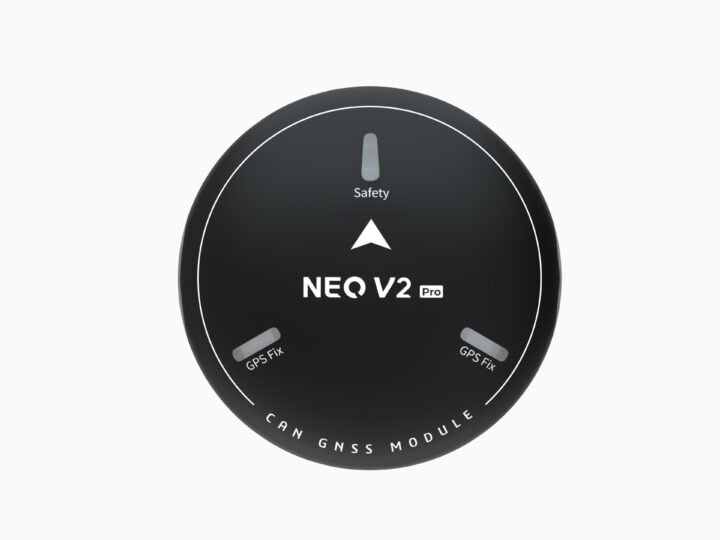

NEO V2 Pro UAVCAN GPS

stars, based on 0reviews

$1.00 gram

Description
Reviews (0)

Product introduction

NEO V2 Pro is a GNSS positioning system based on the UAVCAN communication protocol. It integrates an industrial-grade compass, barometer, flight controller status lights, buzzer, and safety switch in one; it has high safety and strong anti-interference characteristics .

Triple filtering design

NEO V2 Pro adopts SAW + LNA + SAW Triple filtering design, which effectively avoids the influence of remote control, digital transmission, and 4G signals on GPS positioning reception.

Program open source, supports custom programs

Hardware parameters
Processor	STM32F417M
Compass	RM3100
Barometer	MS5611
GNSS receiver	UBLOX Eighth Generation Navigation and Positioning Receiver (M8N)
GNSS concurrently	GPS/QZSS L1 C/A,GLONASS L10F ,BeiDou B1I,Galileo E1B/C,SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Nav. update rate	10HZ(MAX)）
Position accuracy	2M
Acquisition	Cold start 26s ；Hot start 1s；Aided start 2s
Sensitivity	Tracking and nav. -167dBM；Cold start Hot star -148dBM；Reacquisition -160dBM
Protocol	UAVCAN
Upgrade firmware	Support
Support Flight control type	Ardupilot/PX4*
Interface Type	GHR-04V-S
Input voltage	4.7~5.2V
Operating temperature	-10~70℃
产品外观
Size	60mm×60mm×16mm(without stand)
Weight	33g(without stand)

NEO V2 Pro UAVCAN GPS

Product introduction

Triple filtering design

Program open source, supports custom programs

Download/Neo V2 Pro UAVCAN Protocol GPS
